Suitable For

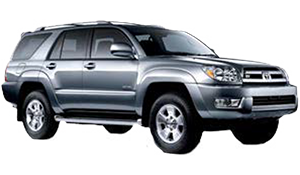

A vehicle image representing the page's contents

Type:

4 Runner

Model:

4th Generation - GRN215, KDN215, TRN215 (2003 to 2009)

Variant:

0"-2" Lift

Detail:

4.0L V6 Petrol, 4.7L V8, 3.0L Diesel
50mm Lift (2")

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

4.0L V6 Petrol
3.0L Diesel

Linear Rate
Raised Height (25mm Lift)

Part Number

C59-238

Availability

Linear Rate
Raised Height (45mm Lift)

Part Number

C59-300

Availability

Linear Rate
Raised Height (45mm Lift)
50-100Kg

Part Number

C59-302

Availability

4.7L V8

Linear Rate
Raised Height (25mm Lift)

Part Number

C59-300

Availability

Linear Rate
Raised Height (45mm Lift)

Part Number

C59-302

Availability

Linear Rate
Raised Height (45mm Lift)
50-100Kg

Part Number

C59-314

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-221

Availability

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

IMS59-50221

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

MRA59-A221

Availability

X - Centre of Eye to Spring Seat

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-002K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-202K

Availability

Strut Top Cap

Strut Top Cap

Part Number

SC59-001

Availability

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Availability

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Diff Drop Kit

Icon for a Dobinsons Diff Drop Kit

Diff Drop Kit

Part Number

DD59-527K

Availability

Helps With CV Angle

Rear

Coil Spring

Linear Rate
Raised Height (20mm Lift)

Part Number

C59-599

Availability

Linear Rate
Raised Height (35mm Lift)

Part Number

C59-505

Availability

Linear Rate
Raised Height (45mm Lift)

Part Number

C59-325

Availability

Linear Rate
Raised Height (45mm Lift)
100-200Kg Constant Load

Part Number

C59-327

Availability

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
300-400Kg Constant Load

Part Number

C59-329

Availability

Variable Rate
Raised Height (60mm Lift)
No Load

Part Number

C59-675V

Availability

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
Extra Soft - No Load

Part Number

GS59-745

Availability

Twin Tube Nitro-Gas
Extra Heavy Duty
Standard Height Only

Part Number

GS59-637

Availability

Twin Tube Nitro-Gas

Part Number

GS59-701

Availability

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-575

Availability

GS59-575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

IFP Monotube Shock (IMS)
Extra Heavy Duty

Part Number

IMS59-50701

Availability

IFP Monotube Shock (IMS)
Extra Heavy Duty
(Long Travel)

Part Number

IMS59-50575

Availability

IMS59-50575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A701

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)

Part Number

MRA59-A575

Availability

MRA59-A575 is a Long Travel Shock Absorber
Requires Bump Stop Extensions To Stop Shock Absorber Bottom Out

Hydraulic Bump Stop

Replaces OEM Inner Coil Bump Stops For Smoother Bottom Out And Reduced Bucking

Height Adjustable - Can Be Used As Bump Stop Extension Kit

Icon for a Dobinsons Hydraulic Bump Stop

Threaded Body
56mm Diameter
46mm Travel

Part Number

HBS56-009

Availability

Hydraulic Bump Stop Mounting Kit
(Bolt In)
(Excludes Bump Stops)

Part Number

HBS59-010FK

Availability

Control Arm

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-522K

Availability

Lower Control Arm

Icon for a Dobinsons Lower Control Arm

Heavy Duty Rear Lower
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-520K

Availability

Panhard Rod

Adjustable Panhard Rod
(Complete with Bushes)

Part Number

PR59-1423

Availability

Sway Bar Extension

Adjustable Sway Bar Extension
(Suits 2" to 4" Lift)

Part Number

SE59-529

Availability
