Suitable For

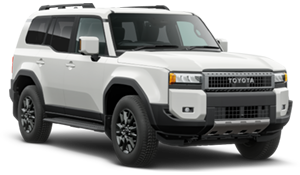

A vehicle image representing the page's contents

Type:

LandCruiser Prado

Model:

250 Series (2024 on)

Variant:

3" Lift

Detail:

4x4

Download Catalogue Page

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

The following modifications (but not limited to) need to be made to the vehicle before the kit is fitted.

•Adjustable Panhard Rods

•Modified Leading / Trailing Arms

•Brake Hoses

•Extended Bump Stops

•Gear Box & Drive Line Modifications

•Steering Arms

•Swaybar Modification

Dobinsons Spring & Suspension do not accept any responsibility for injury caused to person or property through the use of the products listed on this page.

These products do not come with any warranty or guarantee.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

2.4L, 2.7L - 4 Cyl. Petrol

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-882

Availability

Linear Rate
Raised Height (75mm Lift)
70-100Kg

Part Number

C59-816

Availability

2.8L Diesel
3.5L Petrol

Linear Rate
Raised Height (75mm Lift)

Part Number

C59-816

Availability

Linear Rate
Raised Height (75mm Lift)
50-70Kg

Part Number

C59-858

Availability

Linear Rate
Raised Height (75mm Lift)
80-100Kg

Part Number

C59-820

Availability

Shock Absorber

Shocks Do Not Suit Sahara ZX And GR Sport Models With Factory Electronic Shock Absorbers

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 250mm / 9.8" To Steel

Part Number

IMS59-60660

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 250mm / 9.8" To Steel

Part Number

MRA59-A662

Availability

X - Centre of Eye to Spring Seat

Control Arm

Upper Control Arm

(Pair) Adjustable Camber
Increased Castor
Ball Joint Not Included
(Long Travel)

Part Number

UCA59-212K

Availability

Strut Top Cap

Part Number

SC59-021

Availability

Bump Stop

Rubber Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.
