Suitable For

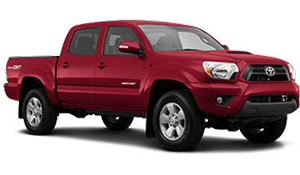

A vehicle image representing the page's contents

Type:

Tacoma

Model:

2nd Generation - TRN/GRN 240, 245, 250 (2005 to 2015)

Variant:

Detail:

4x4 Single Cab, Extra Cab, Dual Cab

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Single Cab 2.7L

Linear Rate
Raised Height (45mm Lift)

Part Number

C59-238

Availability

Linear Rate
Raised Height (50mm Lift)
80-100Kg

Part Number

C59-300

Availability

Dual Cab 4.0L

Linear Rate
Raised Height (40mm Lift)

Part Number

C59-302

Availability

Linear Rate
Raised Height (45mm Lift)
80-100Kg

Part Number

C59-314

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-221

Availability

IFP Monotube Shock (IMS)
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

IMS59-50221

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

MRA59-A221

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-25mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-001

Availability

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Availability

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-003K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-203K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Rear

Leaf Spring

3 + 2 Leaves
Raised Height (55mm Lift)
Medium Duty
Up to 100Kg Constant Load

Part Number

L59-110-R

Availability

4 + 2 Leaves
Raised Height (55mm Lift)
Heavy Duty
280Kg Constant Load

Part Number

L59-111-R

Availability

5 + 2 Leaves
Raised Height (55mm Lift)
400-550Kg Constant Load

Part Number

L59-112-R

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-940

Availability

IFP Monotube Shock (IMS)
(Long Travel)

Part Number

IMS59-50941

Availability

IMS59-50941 Will Require Bump Stop Extensions Or Longer Bump Stops To Prevent Shock Absorber Bottoming Out.

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A940

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
(Long Travel)

Part Number

MRA59-A941

Availability

MRA59-A941 Will Require Bump Stop Extensions Or Longer Bump Stops To Prevent Shock Absorber Bottoming Out.

Spring & Shackle Bush Kit

Kit Contains:
6 x PB59-1503 (F, R, C)

Part Number

PB59-1101K

Availability

U-Bolt Kit

Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability
